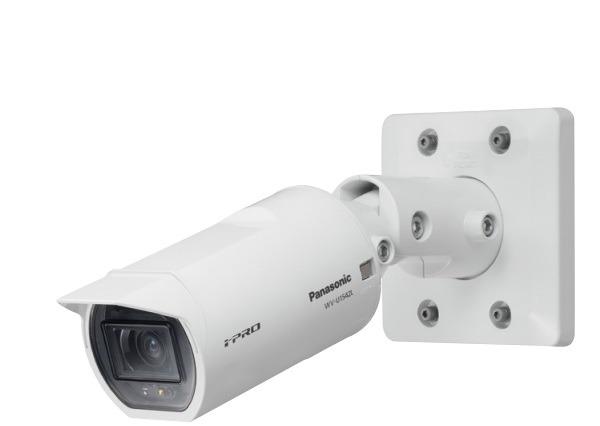

Camera IP 4.0 Megapixel hồng ngoại PANASONIC WV-U1542L
- Cảm biến hình ảnh: Approx. 1/2.7 type CMOS image sensor.
- Độ phân giải: 4.0 Megapixel (30 khung hình/ giây).
- Ống kính có động cơ và ống kính lấy nét có động cơ zoom 2.5x.
- Tiêu cự: 2.9 – 7.25 mm {1/8 - 9/32 inches}, F2.0 Motorized.
- Góc quan sát H: 44-103 deg. V: 25-57 deg.(16:9).
- Tầm quan sát hồng ngoại: 20 mét.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ Super Dynamic 102dB.
- Tầm nhìn ban đêm màu (0.019lx đến 0.3lx).
- Chuẩn nén hình ảnh: H.265, Smart coding.
- Chế độ hành lang (xoay 90° hoặc 270°).
- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.
- Tiêu chuẩn bảo vệ: Type 4X, NEMA 4X.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn hỗ trợ: PoE (IEEE802.3af) 7.2W.
- Hỗ trợ ONVIF G T.
- Tiêu chuẩn UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1, FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024.
Đặc tính kỹ thuật
| Model | WV-U1542L |
| Camera | |
| Image Sensor | Approx. 1/2.7 type CMOS image sensor |
| Minimum Illumination | Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW : 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31 |
| Dynamic Range | Max.102 dB (Super Dynamic: On, Level: 31) |
| Back light compensation / High light compensation | BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off) |
| Fog compensation | On/ Off, The level can be set in the range of 0 to 8. (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off Maximum irradiation distance: 20 m {Approx. 65 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Focal length | 2.9 mm – 7.3 mm {1/8inches-9/32inches} |
| Optical zoom | 2.5x (Motorized zoom/ Motorized focus) |
| Extra optical zoom | 2.5x - 3.3x (when resolution is 1920x1080) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE) |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Adjusting Angle | |
| Ceiling mounting | Horizontal: ±180 ° (Adjust by horizontal (PAN) angle) Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle) Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Wall mounting | Horizontal: ±100 ° (Adjust by vertical (TILT) angle)* Vertical : ±100 ° (Adjust by vertical (TILT) angle)* Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
| Browser GUI | |
| Camera Control | Brightness |
| GUI /Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] *[4:3 mode] is not supported. 2560×1440, 1920×1080, 640×360, 320×180 |
| H.265 | Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort Transmission Type: Unicast / Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off AUTO VIQS: On/ Off |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure Compatible microSDXC/ microSDHC Memory Card: Panasonic 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| Alarm | |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 150 mA, Approx. 7.2 W (Class 0 device) |
| Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | 112.5 mm (W) x 112.5 mm (H) x 262 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)} |
| Mass (approx.) | 800 g {1.77 lbs.} |
| Finish | Main body: Aluminum die cast/ PC resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front cover: Polycarbonate resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
