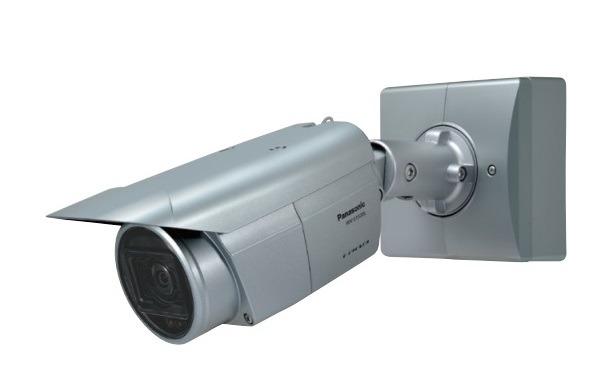

Camera IP hồng ngoại 5.0 Megapixel PANASONIC WV-S1550L
- Cảm biến hình ảnh: 1/2.8 type CMOS image sensor.
- Độ phân giải camera ip: 5.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 2.9 - 9 mm.
- Độ nhạy sáng tối thiểu: Color: 0.07 lx, BW: 0.04 lx; B/W: 0.0 lux (with IR LED on).
- Tầm quan sát hồng ngoại: 40 mét.
- Chuẩn nén hình ảnh: H.265/H.264/JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -40°C to 60°C.
- Nguồn điện:
+ DC power supply: DC12V/ 810 mA/ Approx. 9.8 W.
+ PoE (IEEE802.3af compliant) Device: DC48V/ 210 mA, Approx. 10.1 W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-S1550L |
| Camera | |
| Image Sensor | 1/2.8 type CMOS image sensor |
| Effective Pixels | Approx. 5.1 megapixels |
| Minimum Illumination | - Color: 0.07 lx, BW : 0.04 lx (F1.3, Maximum shutter: Off (1/30s), AGC: 11) - BW: 0 lx (F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) - Color: 0.0044 lx, BW: 0.003 lx (F1.3, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Shutter Speed | 1/30 Fix to 1/10000 Fix |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max 120 dB (Super Dynamic: On, Level: 30 or more, 15 fps) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off The level can be set in the range of 0 to 31. (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/ Off, The level can be set in the range of 0 to 8 (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain | The level can be set in the range of 0 to 11 |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1(IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance: 40 m {Approx. 131 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type 6 *Bundled License |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0°(Off)/ 90° / 180°/ 270° , 90° and 270° are valid only in the 16: 9 mode. |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Zoom Ratio | 3.1x Optical (Motorized zoom/ Motorized focus) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 2.9 - 9 mm {1/8 inches - 11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) |
| Focus range | 0.3 m {11-13/16 inches} – ∞ |
| Angular Field of View | - [16 : 9 mode] Horizontal: 34° (TELE) – 106° (WIDE) Vertical: 19° (TELE) – 57° (WIDE) - [4 : 3 mode] Horizontal: 34° (TELE) – 106° (WIDE) Vertical: 25° (TELE) – 77° (WIDE) |
| Adjusting Angle | |
| Ceiling mounting | - Horizontal: ±180 ° (Adjust by horizontal (PAN) angle) - Vertical: 0 ° to 100 ° (Adjust by vertical (TILT) angle) - Yaw: -190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Wall mounting | - Horizontal: ±100° (Adjust by vertical (TILT) angle)* - Vertical: ±100° (Adjust by vertical (TILT) angle)* - Yaw: –190° to +100° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment : Low/ Middle/ High |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/JPEG (MJPEG) | - 16 : 9 mode 3072 x 1728/ 2560 x 1440/ 1920 x 1080/ 1280 x 720/ 640 x 360/ 320 x 180 - 4 : 3 mode 3072 x 2304/ 2560 x 1920/ 1280 x 960/ 800 x 60/ VGA/ 400 x 300/ QVGA |
| H.265/H.264 | Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort |
| Transmission Type: Unicast / Multicast | |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS: On/ Off |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| SDXC/SDHC/SD Memory Card | - H.265/ H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SDXC/SDHC/SD - Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack - For microphone input: + Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) + Input impedance: Approx. 2 kΩ (unbalanced) + Supply voltage: 2.5 V ±0.5 V - For line input: + Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
| External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC power supply: DC12 V 810 mA/ Approx. 9.8 W PoE (IEEE802.3af compliant) Device: DC48 V 210 mA, Approx. 10.1 W (Class 0 device) |
| Ambient Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) (Power On range: –30 °C to +60 °C {–22 °F to +140 °F}) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions *With adapter box | With adapter box: 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box: 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)} |
| Mass *With adapter box | With adapter box: 2.1 kg {4.63 lbs} Without adapter box: 1.6 kg {3.53 lbs} |
| Finish | Main body: Aluminum die cast and resin, Metallic silver Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front panel: Polycarbonate resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
