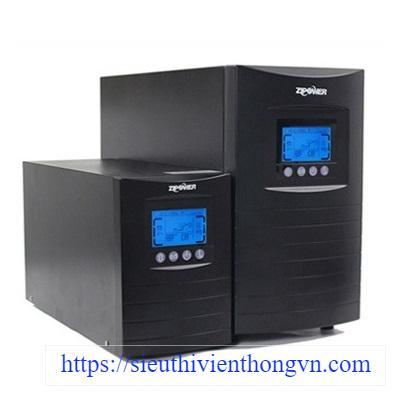

Bộ nguồn lưu điện 2KVA High Frequency Online UPS ZLPOWER EX2K
- Bộ lưu điện UPS 2kVA/1.6KW ZLPOWER Double Convertion True-Online, UPS sử dụng đèn chỉ dẫn dạng LCD.
- Input L and N lines reverse wiring detection.
- DC star function, input PFC revises function.
- Công nghệ: True Online Double Conversion, chuyển mạch 0ns. Advanced MCU microprocessor control technology, ensure long lift reliabily. Excellent Protection against over voltage, overload, over current, overcharge and so on.
- Công suất: 2KVA/1.6 KW.
- Điện áp đầu vào: 100/110/115/120VAC or 220/230/240VAC.
- Dải điện áp vào: 60~138VAC / 115 - 300 VAC (dải điện áp rộng phù hợp với các nguồn điện không ổn định đặc biệt các khu vực hay sụt điện áp).
- Hệ số công suất: >=0.97.
- Dải điện áp đầu ra: 220/230/240 (1±2%) VAC.
- Dải tần số đầu ra: 50/60Hz(adjustable); 50Hz AC mode; Follow AC mode (AC range 46-54Hz); Battery mode; 50Hz (1±0.2%); 60 Hz AC mode ±0,2Hz(Battery mode); Follow AC mode (AC range 46-54Hz); Battery mode; 60Hz (1±0.2%).
- Độ méo: Dạng Sóng hình Sin chuẩn Pure Sin Wave.
- Méo hài: =<3% THD (Linear Load), =<7% THD (Non-Linear Load).
- Khả năng chịu quá tải: 110%-150% maintain 30sec then turn to bypass output, over 150% maintain 300ms.
- Cổng kết nối: Multi-perposex4 (4 ổ cắm đa năng) UPS dễ dàng kết nối với các thiết bị máy tính trực tiếp từ nguồn ra của UPS.
- Efficiency Battery mode/AC mode: 83%/85%.
- Loại Ắcquy: ắcquy axit chì kín, nằm trong UPS, bảo trì theo UPS.
- Nominal DC voltage: 96VDC (12VDC x 8 units).
- Charge Current (Max): 1.0 A.
- Charge Voltage (VDC): 110V +- 0.6V.
- Thời gian lưu điện: >=7 phút đầy tải (12V-7Ah).
- Automatic Transfer: On overload and UPS failure.
- Before UPS Power-on: Default 'NO' user adjustable to 'YES'.
- Chuyển mạch vòng: Oms (from main to battery and vice versa), less than 4ms from inverter to bypass and vice versa.
- Đèn chỉ dẫn LCD display: UPS status, I/P & O/P voltage & frequency, Battery voltage, Battery capacity, Loading, Fault code.
- Đèn tín hiệu: Bypass, On battery Mode, Battery low, Overload, Fault.
- Intelligent RS232 serial port: Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, Free BSD, HP-UX and MAC.
- SNMP (optional): Remote control UPS through SNMP management and internet.
- USB (Optional): Windows family software and Mac OS.
- Cổng chống sét: RJ45 I/O port available for network or FAX/Telephone line/Modem.
Thông số kỹ thuật
| ONLINE UPS MODEL | EX2K |
| Technology | True Online Double Conversion Advanced MCU micro-processor control technology, ensure longlift reliabily |
| Capacity | 2KVA/1.6KW |
| Input | |
| Nominal Voltage | 110/115/120VAC or 220/230/240VAC |
| Voltage Range | 60-138VAC or 115-300VAC |
| Frequency Range | 50Hz/ 60Hz |
| Phase | Single phase with Ground |
| Power Factor | >=0.97 |
| Ouput | |
| Voltage | 110/115/120* (1±2%) VAC or 220/230/240* (1±2%) VAC |
| Frequency | 50/60Hz (Adjustable) 50/60Hz(adjustable) 50Hz AC mode; Follow AC mode (AC range 46-54Hz); Battery mode; 50Hz (1±0.2%) 60 Hz AC mode ±0,2Hz (Battery mode); Follow AC mode (AC range 56-64Hz); Battery mode; 60Hz (1±0.2%) |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.8 |
| Current Crest Ratio | 3:01 |
| Overload Capacity | 110%-150% for 30s, over 150% for 200ms |
| Harmonic Distortion | <3% THD (Linear Load), |
| Connections | Multi perpose Socket x 4 Or IEC320x6 |
| Efficiency | |
| To AC Mode | 85% |
| To Battery Mode | 83% |
| Battery ZLPOWER | |
| Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | Built in batteries 12V7AH |
| Quantity | 8pcs |
| Back-up Time (Full load) | >=7 minutes |
| Recharge Time | 5 hours to 90% of capacity full discharge |
| Charge current (MAX) | 1.0A |
| Charge voltage | 110V/±0.6V |
| Bypass | |
| Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default “ON” user adjustable to “YES” |
| Transfer Time | 0ms, less than 4ms from inverter to bypass and vice versa |
| Indicators | LCD Display: UPS status, Battery capacity, Loading, Fault code (LCD: I/P & O/P voltage & frequency, Battery voltage, |
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic noise | < 50dB (At 1 meter distance) |
| Communication | |
| Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
| SNMP (Optional) | Remove control UPS through SNMP management and Internet |
| USB (Optional) | Windows family software and Mac OS |
| Network Surge Protection | RJ45 I/O port available for network or FAX/Telephone line/Modem |
| Net weight (kgs) | 26.5 kg |
| UPS Dimension (LxWxH (mm)) | 455x195x340 mm |
- Bảo hành: 24 tháng.
