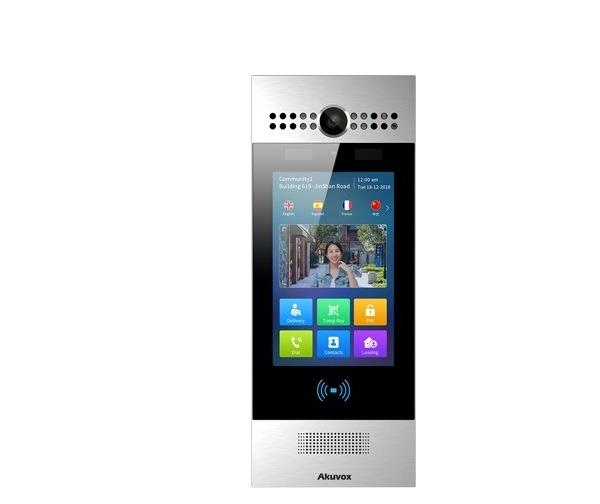

Camera chuông cửa IP AKUVOX R29S
- Camera chính 3.0 megapixel tự động cân bằng sáng, góc 120°, hỗ trợ hồng ngoại.
- Camera phụ 1.0 megapixel góc 120°.
- Hỗ trợ chức năng nhận dạng khuôn mặt.
- Hỗ trợ màn hình 7-inch LCD chuẩn video H264, H265.
- Giao tiếp video hai chiều, khử tiếng vọng.
- Hỗ trợ hệ điều hành Android.
- Hỗ trợ đầu đọc thẻ.
- Hỗ trợ chuẩn giao tiếp NFC.
- Hỗ trợ kết nối được nhiều loại thẻ.
- Tương thích với tất cả tổng đài IP chuẩn SIP.
- Hỗ trợ kết nối tới 8 màn hình khác nhau.
- Điều khiển được 2 cửa khác nhau.
- Có khả năng chống va đập đạt tiêu chuẩn IK06.
- Hỗ trợ chuẩn PoE, hoặc nguồn 12V.
- Vật liệu: Nhôm nguyên khối.
- Tiêu chuẩn chống bụi và nước: IP65 (thích hợp lắp đặt trong nhà và ngoài trời).
- Bao gồm giá treo hoặc âm tường.
Đặc tính kỹ thuật
| Physical & Power | Front panel: Aluminum |
| RAM/ ROM: 2GB/16GB | |
| Display: 7 Inch IPS LCD | |
| Screen: 7 Inch capacitive touch screen | |
| Main Camera: 3Megapixels, automatic lighting | |
| Auxiliary Camera: 1Megapixels | |
| Light sensor: Support | |
| Infrared sensor: Support | |
| Wiegand port: Support | |
| RS485 port: Support | |
| RF card reader: 13.56MHz & 125kHz | |
| Relays ln/out: 3/3 | |
| Microphone: -32dB | |
| Speaker: 8Ω/2W | |
| Bluetooth: Support | |
| Ethernet port: RJ45, 10/100Mbps adaptive | |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| IP/IK Level: IP65/ IK06 | |
| Installation: Flush-mounted & Wall-mounted | |
| Flush-mounted DIM: 324x130x60mm | |
| Wall-mounted DIM: 324x130x33mm | |
| Working Humidity: 10-90% | |
| Working Temperature: -20°C - +55°C | |
| Storage Temperature: -40°C - +70°C | |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec: G.711a, G.711μ, G.729 | |
| Broadband audio codec: G.722 | |
| DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info | |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | Sensor: 1/3', CMOS |
| Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p | |
| Video codec: H.264 | |
| Video resolution: up to 1920x1080p | |
| Max. image transfer rate: 1080p - 25fps | |
| Viewing angle: 120°(H)/ 64°(V) | |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| White LEDs for QR code scanning | |
| Compatible to 3rd-party video components, | |
| Networking and Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | Android OS for any 3rd-party software or customization |
| Relays controlled individually by DTMF tones | |
| Multi-way Unlock: Face, IC/ID Card, PIN and BLE | |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance: auto | |
| Minimum illumination: 0.1LUX | |
| Deployment & Maintenance | Auto-Provisioning |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup/restore | |
| Entry log export | |
| Access table export/import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application | Office door phone with on-site or hosted IP-PBX |
| Remote site entry over Internet | |
| Apartment/flat intercom with door access control | |
| Business information or a welcome experience for guests |
- Bảo hành: 24 tháng.
