Máy quét X-ray Astrophysics XIS-5335

  • XIS-5335
  • Ranger
Giá : Liên hệ

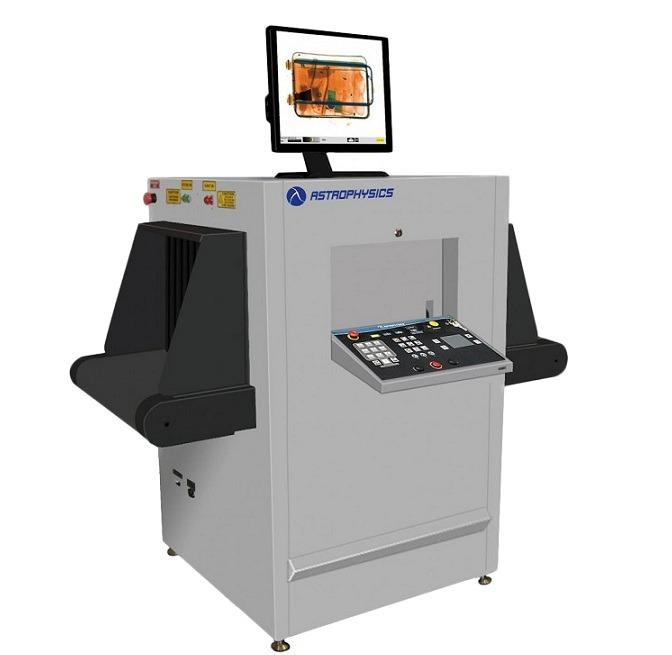

Máy quét X-ray Astrophysics XIS-5335

- Máy X-ray dùng soi hành lý, tìm kim gãy trong các nhà máy sản xuất túi xách, giày dép.

- Thích hợp sử dụng trong nhà máy (để tìm kim trong quần áo, giày dép, túi xách), tòa nhà thương mại, khách sạn, khu quân sự, nhà tù, điểm kiểm tra bảo mật…

Thông số kỹ thuật

- Sensitivity: 40 AWG Typical, 38 AWG Standard.

- Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical.

- Steel Penetration1: 12 mm Typical, 10 mm Standard.

- Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level.

- Film Safety: Guaranteed up to ISO 1600 (33 DIN).

- Voltage: 90kV, Operating at 84kV.

- Tube Current: 0.6 mA.

- Cooling: Sealed Di-Electric Oil Bath with Forced Air.

- Duty Cycle: 100%, No Warm-Up Procedure Required.

- Beam Direction: Diagonally Upward.

- Detector: 1024 Channels in an L-Shaped Array.

- Tunnel Opening (W x H): 53.3 x 35.6 cm.

- Dimensions (L x W x H): 131.3 x 76.4 x 122.5 cm.

- Shipping Dimensions (L x W x H): 144.8 x 86.3 x 165.0 cm.

- Net Weight: 345 kg.

- Shipping Weight: 505 kg.

- Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse.

- Conveyor Height: 72.9 cm from Floor.

- Conveyor Capacity: 165 kg Evenly Distributed Load.

- Sản xuất tại USA.

- Bảo hành: 12 tháng.

Bình luận

Cổng dò kim loại Foxcom HP6000LCD (24 zone)

Giá :

39,000,000 vnđ

Cổng dò kim loại Foxcom HP6000LCD (24 zone)

Mua hàng

Cổng dò kim loại Foxcom HPXYT2101-II (6 zone)

Giá :

18,200,000 vnđ

Cổng dò kim loại Foxcom HPXYT2101-II (6 zone)

Mua hàng

Cổng dò kim loại Foxcom HP6500LCD (24 zone)

Cổng dò kim loại Foxcom HP6500LCD (24 zone)

Mua hàng

Cổng dò kim loại Defender MD12 (12 zone)

Cổng dò kim loại Defender MD12 (12 zone)

Mua hàng
HOT

Cổng dò kim loại CEIA HI-PE Multi Zone

Cổng dò kim loại CEIA HI-PE Multi Zone

- Cổng dò kim loại được dùng chủ yếu để phát hiện vũ khí, các vật dụng kim loại như dao, súng, đồng xu bằng sắt có từ tính.

- Ứng dụng điển hình của cổng dò kim loại là kiểm soát hành khách tại các sân bay và cảng biển, các tòa án, các tòa nhà chính phủ, các hội nghị, các địa điểm công cộng, các khu thể thao hay các sự kiện đặc biệt, sân vận động, các buổi hòa nhạc, các nhà hàng, sòng bạc...

Specifications

- Accurate Detection of magnetic, non-magnetic and mixed-alloy metal weapons.

- Wide range of threat detection from guns to1/2 cutter blade.

- High Discrimination and Throughput.

- Exceptional Immunity to external interferences.

- High precision bidirectional counter with automatic rescreening compensation (option).

- Random alarm capability programmable from 0% to 100% (option).

- Powered by safe low voltage DC.

- Standard Interfaces: RS-232, Infrared.

- Other available interfaces: Ethernet, USB.

Walk-through gate structure

- State-of-the-art, robust and washable panels

- Protected against aging, weather and wear

Central control unit

- Ergonomic and robust design

- High visibility alphanumeric display and programming keyboard

- Made of advanced plastics or stainless steel and anti-vandalism construction (option)

- Access to the front panel protected by hardware key and two levels of passwords

Alarm signalling

- Visual signals: Multi-zone display bar for “height on person” localization; 2 light bars with selectable entry/exit and pacing indication; Green and red metering signals proportional to the mass of the detected target

- Audio signals: 10 selectable continuous and pulsed tones; 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signalling

- Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux.

- Visual zone indication: 2, 4, 8 or 20 independent zones selectable

Programming

- Remote via RS-232, Infrared Remote Control Unit or Ethernet 10/100 base-T interface

- Security level: International Standard (IS) command

- Local by Control Unit alphanumeric display and keyboard

- Programming access protected by user and super-user passwords

Operational features

- Quick reset time as short as 0.2 seconds for high throughput rate

- Very high detection speed (up to 50 ft/sec.)

- One-touch key reading of inbound, outbound and Security Level Data

- Xuất xứ: Italy.

- Bảo hành: 1 năm.
