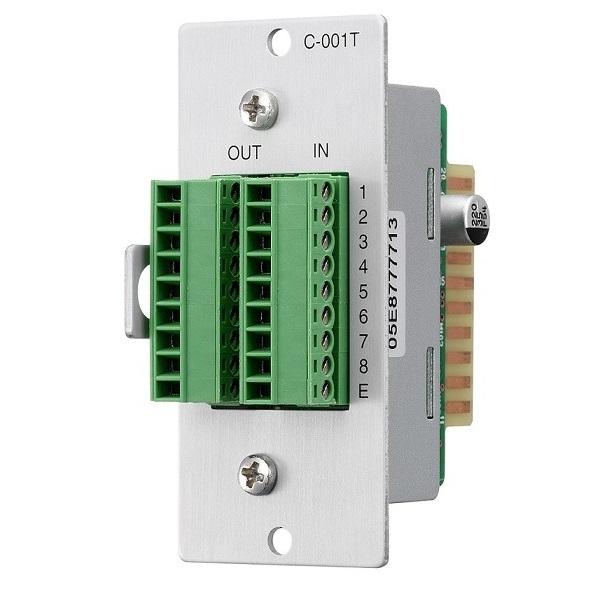

Mođun điều khiển TOA C-001T
-Mođun điều khiển dùng cho seri 9000.
-The C-001T is a control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.
Đặc tính kỹ thuật
| Power Source | 6VDC |
| Current Consumption | 15 mA |
| Control Input | 8 channels, open voltage: 3.3 V DC, short-circuit current: under 1 mA, |
| removable terminal block (9 pins) | |
| Control Output | 8 channels, open collector output, withstand voltage: 27VDC, control current: max. 50 mA, removable terminal block (9 pins) |
| Operating Temperature | -10℃ to +40℃ |
| Finish | Panel: Aluminum, hair-line |
| Dimensions | 35 (W) x 78 (H) x 91.5 (D) mm |
| Weight | 62g |
| Accessory | Removable terminal plug (9 pins) …2, Module mounting screw …2 |
-Sản xuất tại Nhật Bản.
-Bảo hành: 12 tháng.
