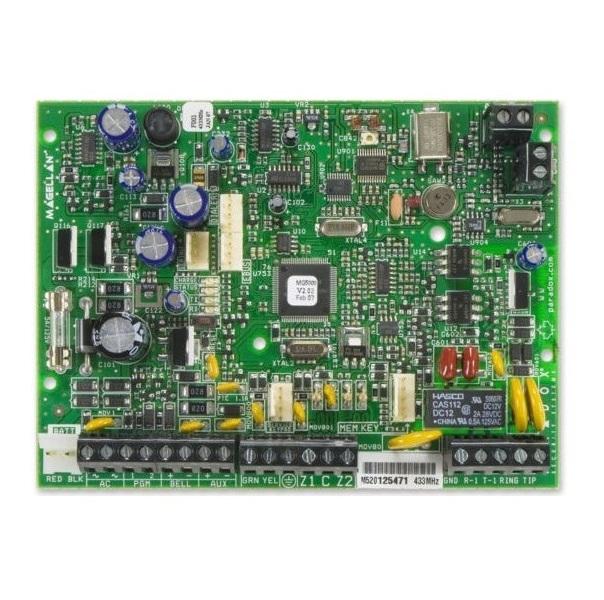

Bảng điều khiển không dây 2 vùng PARADOX MG5000
- StayD Mode
- Built-in transceiver (433MHz or 868MHz)
- 32 zones (any of which can be wireless)
- 32 users and 32 remote controls (one per user)
- 2 partitions
- 4-wire communication bus (connect up to 15 keypads)
- Supports REM3 hand-held remote keypad
- Supports up to 8 K32RF / K37 wireless keypads
- Supports up to 2 RPT1 wireless repeaters
- Supports PCS Series
- Supports IP100 Internet Module
- Supports VDMP3 Plug-in voice dialer
- Supports 16 PGMs (any of which can be wireless)
Đặc tính kỹ thuật
| Model | MG5000 |
| Built-In Transceiver | Yes |
| Supported Zones | 32, 2 on-board (4 with ATZ) |
| Keypad Zones | 15 |
| Partitions | 2 |
| Users/ Remote Controls | 32 |
| PGMs | 16 maximum (2 on-board I/O) |
| Events Buffered | 256 |
| Wireless Repeaters | 2 |
| Siren | Wired / Wireless |
| Wireless Sirens | 4 (SR130 / SR150) |
| Wireless Keypads | 4 (K32RF / K37) |
| Expansion Bus | Yes |
| GPRS/ GSM Module (PCS Series) | Yes |
| Voice and Utility Reporting & User Menus | VDMP3 |
| Personal Dialing | Yes |
| In-Field Firmware Upgrade | Yes |
| RF Jamming Supervision | Yes |
| Input Voltage | 16.5VAC (50 or 60 Hz) minimum 20VA |
| Auxiliary Current | 700 mA maximum, fuseless shutdown at 1.1A |
| RF Frequency | 433 or 868 MHz |
| Battery | 12 VDC, 4Ah/ 7Ah |
| Battery Charging Current | 350 mA or 700 mA |
| PGM Output | 2 x 100 mA open-collector |
| Bell Output | 1A (fuseless shutdown at 3A) |
| Operating Temperature | 0 to 50°C |
| Dimensions | 14 x 10.4 x 3 cm |
- Thương hiệu của CANADA.
- Bảo hành: 24 tháng.
