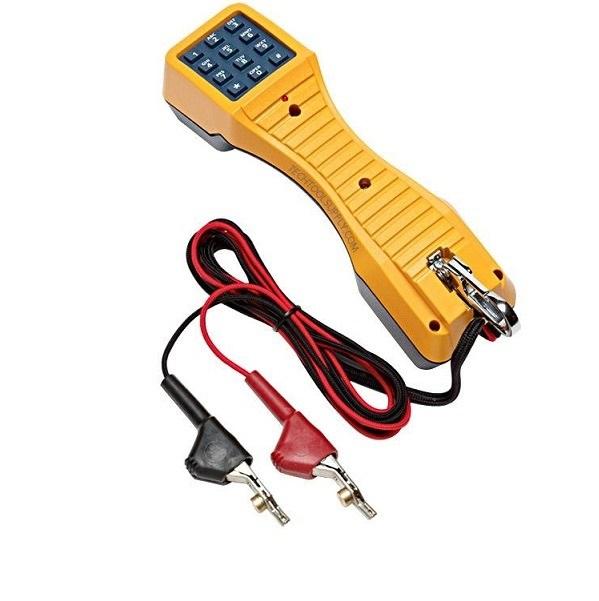

Telephone test set with ABN TS19 FLUKE networks
Product Number: 19800009
The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.
Specifications
| Electrical | |
| Loop Limit | 2.4kΩ maximum at 48 VDC |
| DC Resistance (Talk Mode) | 150Ω typical at 80 mA current |
| AC Impedance (Monitor Mode) | Low impedance (Ring position) 600Ω at 1 KHz typical High impedance (HI Z position) 100 kΩ minimum at 1 KHz |
| Rotary Dial Output | 10 pps .5 pps |
| Pulsing Rate | 60 % ± 2 % |
| Percent Break | 800 ms typical |
| Interdigit Interval Leakage During Break | > 50 kΩ |
| DTMF Output | ±1 % maximum |
| High versus Low Tone Difference | 4 dB maximum |
| General | |
| Drop | 1 meter, 4 times |
| Altitude | To 3,000 meters max |
| Dimensions (LxWxH) | 22.2 x 6.03 x 8.57 cm |
- Bảo hành: 12 tháng.
