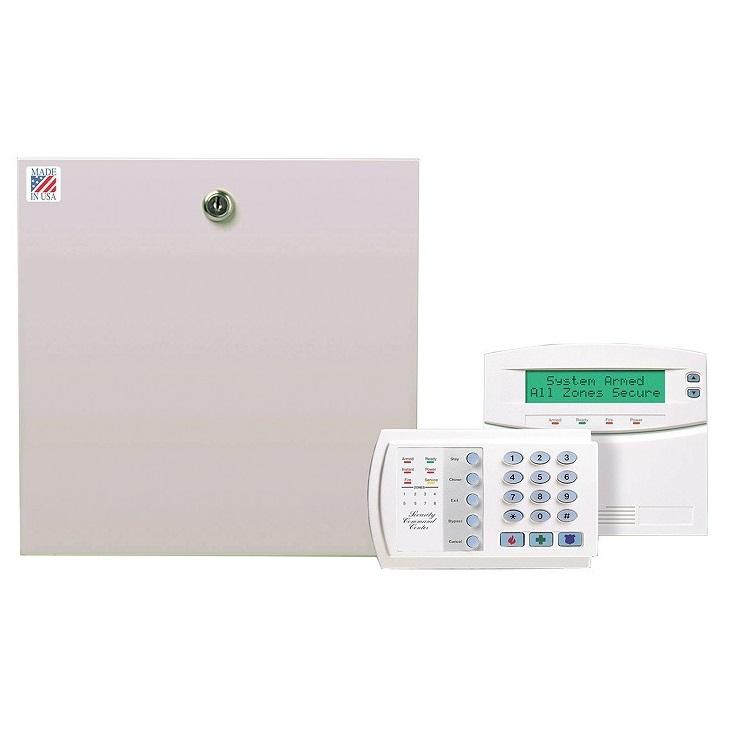

Bộ báo cháy-Báo trộm trung tâm NetworX NX-8E 16 ZONE
- The most convenient, flexible, durable and user-friendly control panel ever seen.
- Featuring sophisticated software which allows up to 240 users to interface with 192 zones and 8 partitions.
- The NetworX design allows a fully loaded system to be housed in one single metal enclosure, establishing a logical solution and design response to modular systems. Up to 32 modules can be added to expand the capabilities of the NX8-E.
- Fire alarm verification for greater false alarm immunity.
- Dynamic battery test.
- Standard RS-232 on-board interface.
Specifications
Supply voltage (typical) | 230 Vac, +- 10% 50 Hz |
Operating power (nominal) | 16.5 Vac / 50 Hz 40 VA |
Current consumption | min. 60 mA |
Battery | max. 12 V / 17 Ah |
Auxiliary power | 2 A with 40 VA transformer |
On-board siren driver | 112 dB, 2 tones (steady/yelp) |
Operating temperature | 0° to 50°C |
Enclosure dimensions | 290 x 290 x 95 mm (w x h x d) small enclosure 385 x 460 x 119 mm (w x h x d) commercial enclosure |
Weight (small enclosure) | 3.9 kg (incl. transformer and tamper |
Weight (big enclosure) | 8.6 kg (incl. transformer and tamper & stand-offs |
- Bảo hành: 12 tháng.
