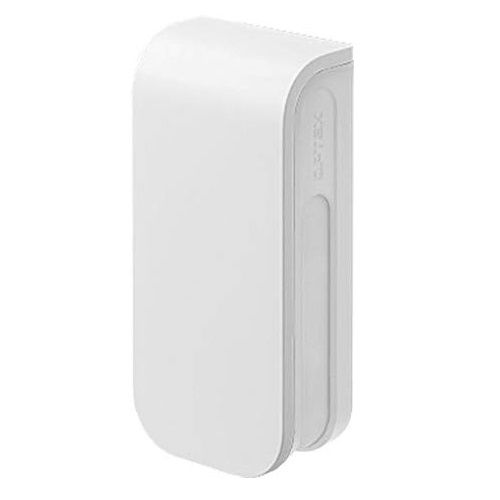

Cảm biến chuyển động hồng ngoại OPTEX BXS-AM
- Cảm biến chuyển động hồng ngoại phát hiện chuyển động hai cánh (trái/phải) ngoài trời có dây.
- Góc quét: 03°/12m mỗi cánh, 24m cả hai cánh.
- Môi trường lắp đặt: Trong nhà/ngoài trời.
Thông số kỹ thuật
| Detection method | Passive infrared |
| Coverage | 24 m (80') ; 12 m (40') on each side, 4 zones ; 2 zones on each side, 180°narrow |
| PIR distance limit | list the possible range 2.5, 3.5, 6, 8.5, 12 m |
| Detection angle from wall | TO WALL: 0° angled forward AWAY WALL: 3° angled forward selectable |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity | Normal; 2.0°C (3.6°F) at 0.6 m/s Extreme high: 1.0°C (1.8°F)at 0.6 m/s selectable for each side individually |
| Power input | 9.5 to 18 VDC |
| Current draw (except walk test) | 34 mA max. at 12 V DC |
| Alarm period | 2.0 ±1 sec. |
| Warm-up period | 60 sec. or less (LED blinks) |
| Alarm output ® | 28 V DC 0.1 A max. [Individual;Right or General], [N.O. or N.C.] are selectable |
| Alarm output (L) | 28 VDC 0.1 A max. [Individual;Left or General], [N.O. or N.C.] are selectable |
| Trouble output | N.C. 28 V DC 0.1 A max. |
| Tamper output | N.C. 28 V DC 0.1 A max. open when face cover, main unit or base unit is removed |
| LED indicator | Red LED; 1. Warm-up 2. Alarm , 3. Masking detection (DIP switch ON or Walk test) |
| Operation temperature | -30°C to + 60°C (-22°F to +140°F) |
| Environment humidity | 95% max. |
| International protection | IP 55 |
| Mounting | Wall, pole (outdoor, indoor) |
| Mounting height | 0.8 to 1.2 m |
| Weight | 430g |
| Accessories | Screw (4 x 20 mm) x 2 |
- Bảo hành: 24 tháng.
