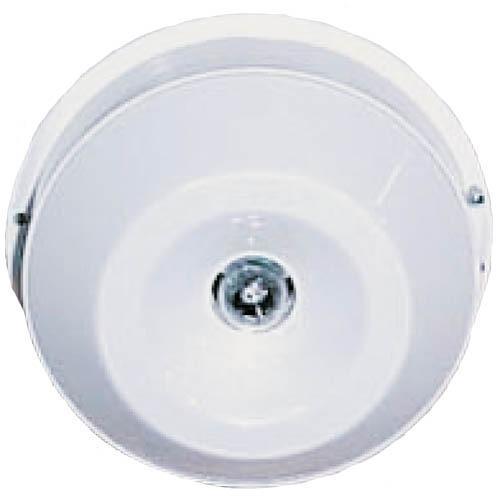

Đầu dò lửa BOSCH D284
- Đầu dò lửa UV/IR. Thích hợp dùng ở những nơi lửa có thể bùng phát nhanh chóng như: Trạm xăng, thư viện, phòng máy…
- Lưu ý: Không có chức năng dò khói và nhiệt.
- Góc dò: 120 độ (Hình nón).
- Khoảng cách dò lửa phụ thuộc vào kích thước ngọn lửa và khoảng cách từ ngọn lửa đến đầu dò.
- Chiều cao lắp đặt tối đa khoảng 8 mét. Bán kính vùng dò lửa khoảng 7 mét.
- D284 Ultraviolet Flame Detector
- Highly reliable, long-lasting ultraviolet (UV) receptor tube
- Low power consumption
- Can be mixed with other detector types on the control panel's initiation detection circuit (IDC)
- Easily maintained; can be cleaned without disassembly
Use the D284 wherever fires can develop quickly. Suitable applications are:
- Petroleum storage areas
- Photographic or film storage areas
- Computer rooms
- Print shops
- Museums
Warning: The D284 is not a substitute for smoke or heat detectors. It provides an added level of notification for fast flaming fires only.
Functions
Basic Operation
An ultraviolet-detector tube within the D284 absorbs very weak ultraviolet (UV) light such as that emitted from a flame and produces an electrical current. The detector's electronic circuitry translates this current into an alarm signal. A counter-current prevents alarm signals from single‑pulse UV sources such as lightning or cosmic flares. Additionally, the circuit is tuned to respond only to wavelengths from 185 nm to 300 nm.
Coverage Area
The D284's response depends on both the size of the fire and the distance from the fire to the detector; therefore the effective coverage area varies. Very small fires must have a duration of at least 7 sec if within 12 ft (3.7 m) of the detector and a duration of 30 sec if within 12 ft to 25 ft
(3.7 m to 7.6 m) of the detector.
Relative Humidity | up to 95%, non-condensing at +104°F (+40°C) |
Temperature (operating) | +14°F to +122°F (-10°C to +50°C) |
Color | Ivory |
Dimensions (diameter x H) | 4 in. x 2 in. (10.2 cm x 5.1 cm) |
Material | ACS plastic (acrylonitrile-chlorinated PE-styrene) |
Contact Rating | 260 mA at 24 VDC |
Alarm Current | 0.25 mA at 24 VDC |
Standby Current | 0.2 mA at 24 VDC |
Normal Voltage (operating) | 24 VDC |
Range Voltage (operating) | 17.6 VDC to 27.7 VDC |
Detection Angle | 120° conical |
UV Sensitivity | 185 nm to 300 nm |
- Sản xuất tại Nhật.
- Bảo hành: 12 tháng.
