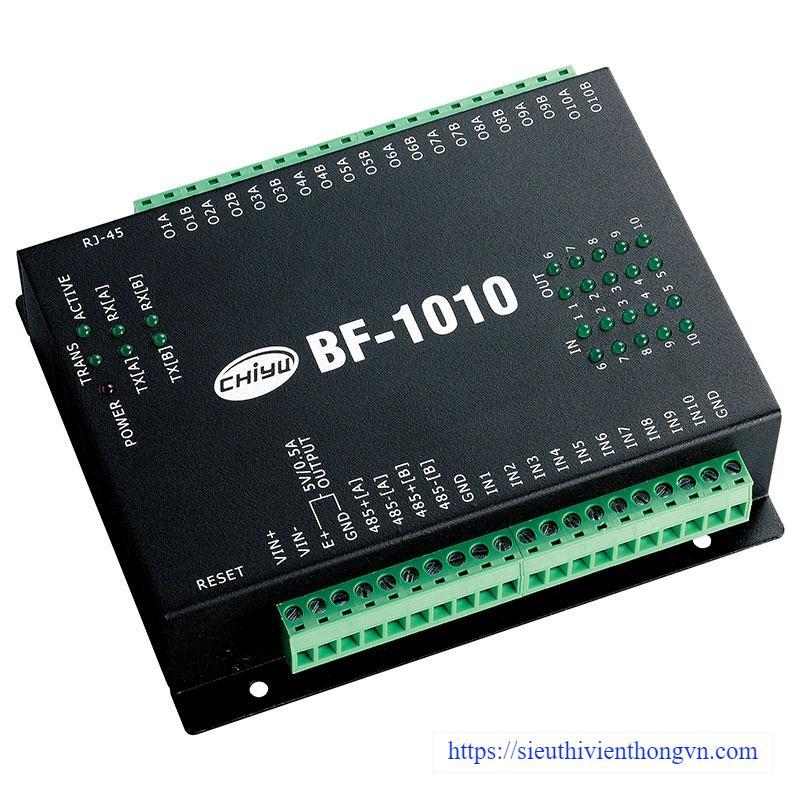

Digital input and output Controller BF-1010

BF-1010: 10 Digital Inputs And 10 Digital Outputs.

Monitor Digital Input: Panic Button, Temperature Sensor, Door Sensor,...etc.

Remote Control Outputs : Siren, Alarm, Light, Fan

Report E-map monitoring and email alert.

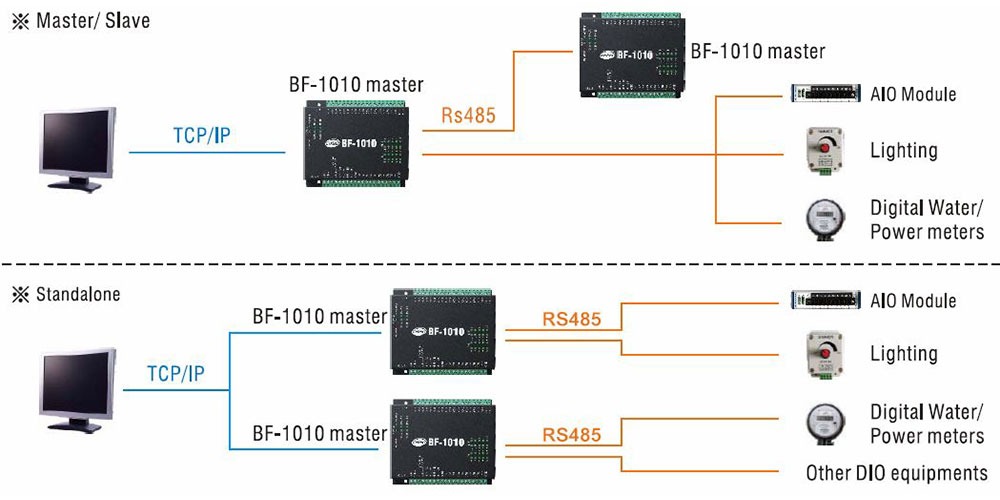

Master & Slave structure (Max 30 DI and 30 DO).

Sensor text overlay (BF1010 DIO controller with temperature / humidity / CO2 sensors, shown real room status from sensors).

Alarm alert (screen alerts from events - unregistered user, door open too long).

Setup trigger events between terminals thru TCP/IP.

For Example:

(1) If temperature in the server room is too high, triggers security office's alarm and also server room's air condition (outputs).

(2) If humidity in green house is low, trigger water spray (outputs), air quality low will trigger air cycling (outputs).

BF-1010: 10 Digital Inputs And 10 Digital Outputs.
Monitor Digital Input: Panic Button, Temperature Sensor, Door Sensor,...etc.
Remote Control Outputs : Siren, Alarm, Light, Fan
Report E-map monitoring and email alert.
Master & Slave structure (Max 30 DI and 30 DO).
Sensor text overlay (BF1010 DIO controller with temperature / humidity / CO2 sensors, shown real room status from sensors).
Alarm alert (screen alerts from events - unregistered user, door open too long).
Setup trigger events between terminals thru TCP/IP.
For Example:
(1) If temperature in the server room is too high, triggers security office's alarm and also server room's air condition (outputs).
(2) If humidity in green house is low, trigger water spray (outputs), air quality low will trigger air cycling (outputs).

Hardware
CPU	16bit / 100MHz
Memory	256 KB ROM & 1 MB SDRAM
Watch Dog	System protection
Power Requirement	DC 9 ~ 30 V, 500 mA
Operation Temperature	0°C ~ 55°C
Operation Humidity	5% ~ 85%RH
Storage Temperature	-20°C ~ 75°C
Dimension	135 x 115 x 35 mm
Weight	525 g.
Interface
Ethernet RJ45 port	10 / 100Base-T, Half / Full duplex, Auto Cross Over, 1.5KV magnetic protected
Serial	Port	Interface	Port Type	Signals
	COM1	RS-485	Screw Terminal	D+, D-
	COM2	RS-485	Screw Terminal	D+, D-
I/O port	10 Channel I/O : 10 isolated D/I an 10 isolated D/O Isolated DI: Optical Isolation: 2,500VDC; Overload protection: 70VDC; Dry Contact Isolated DO: Optical Isolation: 2,500VDC; Contact rating: AC: 120V@0.5A; DC: 30V@1A Total switching time: 10msec
Ethernet Setting	Static IP / DHCP Client / PPPoE
Serial Setting	Parity Check: None, Even, Odd, Mark, Space Data Bits: 5, 6, 7, 8 Stop Bits: 1, 2 Flow Control; RTS / CTS, XON / XOFF
Operation System	Windows XP / 2000 / NT / 95 / 98, Linux, UNIX
Protocol	TCP, IP, UDP, Telnet, ARP, DHCP, ICMP, SMTP, PPPoE, HTTP, UNIX
Operation Mode	Support TCP / UDP Server, Client mode. User name & Password protected for web management. Bulit-in HTTP server for set up and remote management thru browsers. Support system backup and restore. Support Windows 95 / 98 / ME / NT / 2000 / XP / 2003 Virtual COM drivers.
