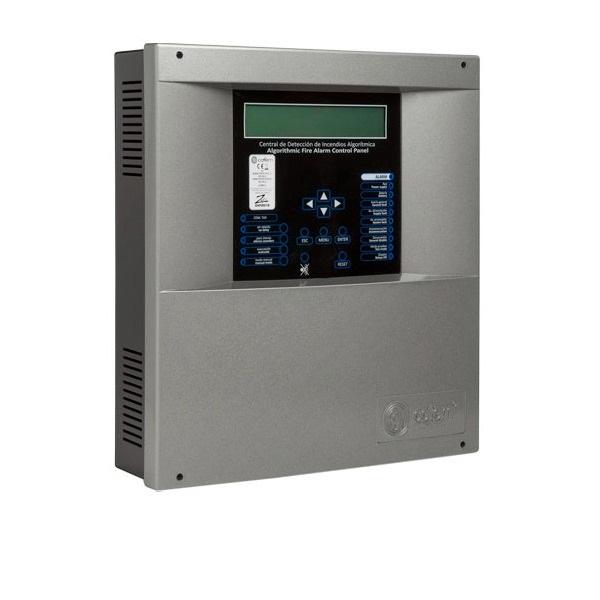

Trung tâm báo cháy địa chỉ 2 loop COFEM ZAFIR02B
- Control panel configurable with 2 loops.
- Loop capability 199 points.
- All the points are supervised by the control panel, except the loop isolator KABY.
- Capacity for 64 configurable relays per control panel.
- Can hold up to 99 zones per panel.
- Registry with capacity of 4095 events with date and time.
- Delay of supervised sounder output programmable between 0 to 10 minutes, identified as S1.
- Alarm output as free voltage relay not supervised, identified as ALARM.
- Failure general output, as free voltage relay not supervised, identified as FAULT.
- Allowed to connect addressable sounders in the loop.
- Evacuation push-button.
- Backlit LCD display with 4 lines and 40 characters.
- Incorporates multiple languages by default (Spanish, English, French, Portuguese, etc).
- Configurable with the PC-EASY CoNET software.
- Connectable to external keyboard (standard PC-PS2).
- Access to the control panel keyboard introducing a numeric code.
- Allows connection of up to 8 repeaters and/or 8 control panels in network.
- Contact ID (on specific request).
- Size: 363 x 331 x 96 mm.
- Certified according to EN-54-2 and EN 54-4 and CE mark according to the European Regulation of Construction Products (UE) N°305/2011.
Thông số kỹ thuật
| Điện áp ngõ vào | 110/230VAC, 50/60Hz |
| Điện áp ngõ ra | 24V Nominal |
| Tiêu thụ tối đa | 70 VA to 230 VAC |
| Ắc- Quy | 2x 12V 7Ah SLA |
| Sạc bình | 500 mA 27V/ DC 20ºC |
| Số thiết bị/loop | 199 |
| Cầu chì những ắc-quy | 4A |
| IP Protection | IP 30 |
| Dòng điện tối đa trên loop | 500 mA / 24-36V/DC |
| Kết nối bàn phím | PS2 minidin 6 |
| Cổng truyền | USB 2.0/1.1 typeB và RS485 |
| Điều kiện môi trường | -10ºC+50ºC |
| Kích thước | 363x 331x 96mm |
| Trọng lượng | 4,5 kg |
| Tiêu chuẩn | EN54-2, EN54-4 |
| Cầu chì ngõ ra 30V | 0,75A tự động reset |
| Cầu chì Sounder S1 | 1,85 A tự động reset |
- Bảo hành: 12 tháng.
