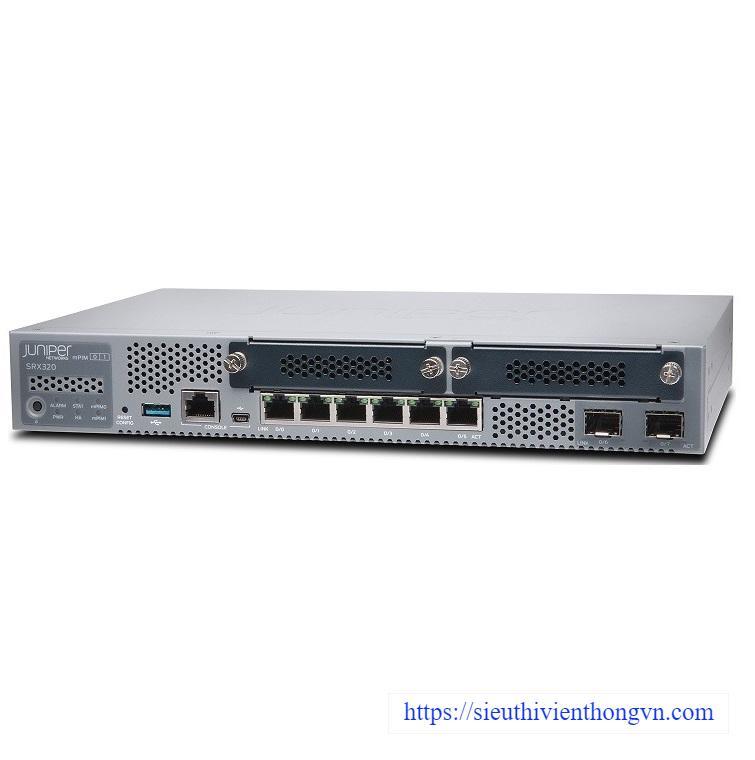

Firewalls and Network Security Router JUNIPER SRX320 Services
- SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included.
- Routing with packet mode (64 B packet size): 300 Kpps.
- Routing with packet mode (IMIX packet size): 800 Kpps.
- Routing with packet mode (1,518 B packet size): 1,500 Kpps.
- Stateful firewall (64 B packet size): 200 Kpps.
- Stateful firewall (IMIX packet size): 500 Kpps.
- Stateful firewall (1,518 B packet size): 1,000 Kpps.
- IPsec VPN (IMIX packet size): 100 Mbps.
- IPsec VPN (1,400 B packet size): 300 Mbps.
- Application visibility and control: 500 Mbps.
- Route table size (RIB/FIB) (IPv4 or IPv6): 256,000/256,000.
- Number of remote access uses: 50.
- GRE tunnels: 256.
- WAN Interface:
+ 1 port T1/E1 MPIM (SRX-MP-1T1E1-R);
+ 1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R);
+ 1 port serial MPIM (SRX-MP-1SERIAL-R);
+ 4G/LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE).
Thông số kỹ thuật
| Connectivity | |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Mini PIM (WAN) slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 6 |
| Memory and Storage | |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| Dimensions and Power | |
| Form factor | Desktop |
| Size (WxHxD) | 11.81 x 1.73 x 7.52 in (29.99 x 4.39 x 19.10 cm |
| Weight (device and PSU) | 3.28 lb (1.51 kg) / 3.4 lb (1.55 kb) |
| Power supply | AC (external) |
| Maximum PoE power | 180W |
| Average power consumption | 46W/221W |
| Average heat dissipation | 157 BTU/h/755 BTU/h |
| Maximum current consumption | 0.634 A/2.755 A |
| Acoustic noise level | 37 dBA/40 dBA |
| Airflow/cooling | Front to back |
| Environmental, Compliance, and Safety Certification | |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 1 (Junos 15.1X49-D60) |
| Common Criteria certification | NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60) |
- Bảo hành: 12 tháng.
