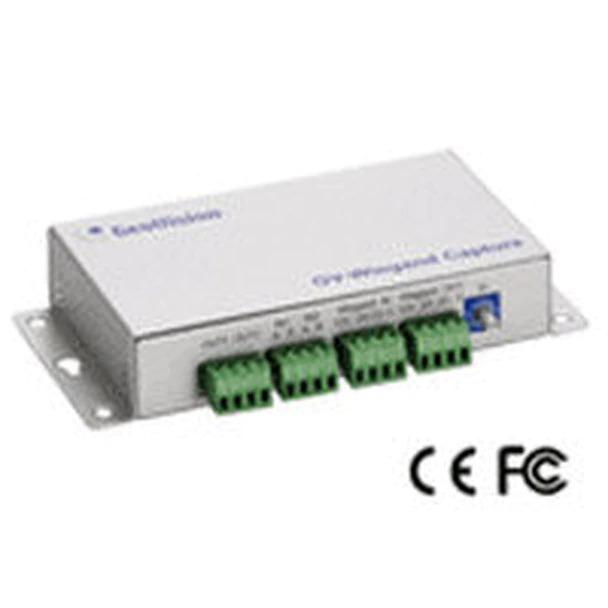

Geovision GV-Wiegand Capture Box
Geovision GV-Wiegand Capture is a box device that can integrate your current Wiegand access control system into DVR systems manufactured by GeoVision. Through the GV-Wiegand Capture, the photo identification and text data from the access control can be easily combined on the video data from DVR. Geovision GV-Wiegand Capture is ideal for access control, time and attendance, or authorized access management where video data is required. Security can use the higher security level of the combined video data for live monitoring during busy hours, and for recording during off-peak hours.
Product Details:
- Communication RS-232: DB9 female
- Communication RS-485: Terminal Block
- 2 inputs
- Inputs signal 12VDC/Dry connect input
- Input High State: 9~12VDC/Close
- Input Low State: 0V/open
- 2 Outputs
- Output Relay Status: Normal open
- Output Relay Capacitance 3Amp/125VAC, 1.5Amp/250VAC
- Output Relay on time: 4ms
- Output Relay off time: 4ms
- Weigand input connector: 12VDC, D0, D1, GND
- Weigand output connector: 12VDC, D0, D1, GND
- Weigand Format: Wiegand 26~40Bits
- POWER;; 12VDC
- Enviromental Conditions Operating Temp: 0°;C~55°;C
- Enviromental Conditions Humidity: 5%~95% (Non-Condensing)
- 120 (w) x 68 (H) x 26 (D) mm
