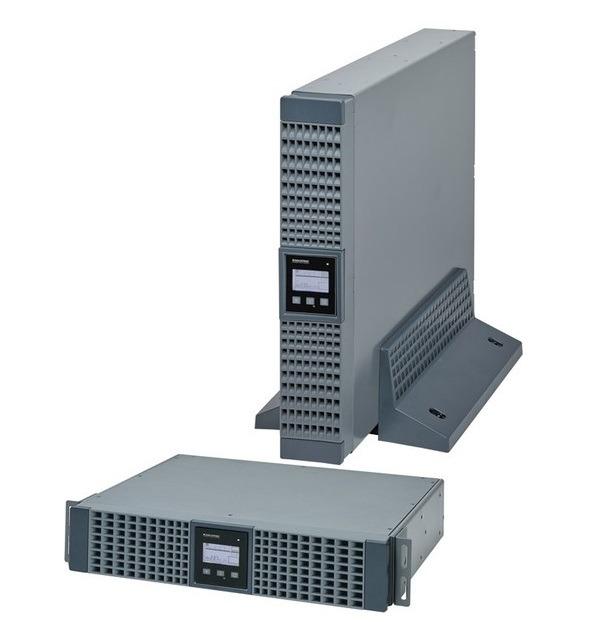

Bộ nguồn lưu điện 2200VA UPS ONLINE RACKMOUNT SOCOMEC NRT2-U2200
- Công suất: 2200 VA/1800 Watt.
- Công nghệ: Online.
- Thời gian chuyển mạch: 0ms.
- Hệ số công suất (Power factor): >0.99.
- Độ méo hài (THDi): <6%.
- Hiệu suất (Efficiency): up to 93% online mode.
- Output: 6 x IEC 320-C13 (10 A) + 1 x IEC 320-C19 (16A).
- Khả năng chịu quá tải (Overload capability): lên 105% liên tục (continuously); 125% x 3 phút (min); 150% x 30 giây (sec).
Technical data
| Sn | 2200 VA |
| Pn | 1800 W |
| Architecture | online double conversion VFI with input PFC and automatic bypass |
| Input | |
| Voltage | 230 V (1ph) 175÷280 V; up to 120 V @70% load |
| Frequency | 50/60 Hz +/-10% (Auto-Selectable) |
| Power factor / THDi | >0.99 / <5% |
| Input socket | IEC 320-C20 (16 A) |
| Output | |
| Voltage | 230 V (1ph) selectable 200/20 /220/240 V - 50 or 60 Hz ± 2% (± 0.05 Hz in battery mode) |
| Power factor | 0.9 @2000 VA |
| Efficiency | up to 93% online mode |
| Overload capability | up to 105% continuously; 125% x 3 min; 150% x 30 sec |
| Output connections | 6 x IEC 320-C13 (10 A) + 1 x IEC 320-C19 (16 A) |
| Battery | |
| Standard autonomy | 8 |
| Voltage | 48 VDC |
| Recharge time | < 3 hr to recover 90% capacity |
| Communication | |
| Mimic panel | LCD with graphical icons |
| RS232 MODBUS protocol | Yes |
| USB HID protocol | Yes |
| WEB/SNMP (Ethernet RJ45 port) | option |
| COMM slot | Yes |
| Dry contacts card | option |
| EPO input (RJ11 port) | Yes |
| Standards | |
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| EMC | IEC/EN 62040-2, AS 62040.2 |
| Performance | IEC/EN 62040-3 (efficiency tested by an external independent body) |
| Product declaration | CE, RCM (E2376) |
| Environment | |
| Operating ambient temperature | from 0 °C to +40 °C (from 15 °C to 25 °C for best battery life) |
| Storage temperature range | from -15 °C to +50 °C (from 15 °C to 25 °C for best battery life) |
| Relative Humidity | 5-95% non-condensing |
| Noise level (ISO 3746) | |
| UPS Cabinet | |
| UPS size std (W x D x H) | 89x430x440 mm |
| UPS size RACK | 2U |
| UPS weight std | 19 kg |
| IP rating | IP20 |
| EBM module size (W x D x H) | 89x438x440 mm |
| EBM module RACK | 2U |
| EBM module weight | 29 kg |
- Thương hiệu SOCOMEC của Pháp.
- Bảo hành 24 tháng, 1 đổi 1 trong thời gian bảo hành.
