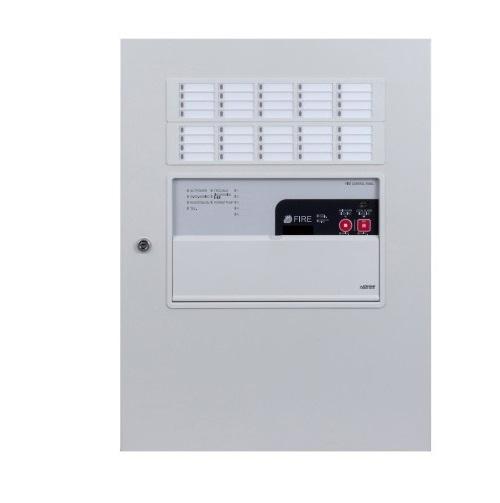

Trung tâm báo cháy 30 kênh NOHMI FAPN104N-B1-30L
- The FAPN104N series fire alarm panel was developed to improve panel-front recognize-ability and functional operability from the viewpoint of users.
- Conventional type available for 30 fire zones.
- Alarm verification type (Verification time: 60 seconds).
- Various test functions: fire indication test, alarm verification time test, battery test, automatic after-test resetting.
- Self-diagnosis system.
- Misoperation inhibit function.
- Built-in telephone system.
- Back-up power supply (Ni-Cd battery, 24VDC).
- Large fire alarm symbol for easy visual recognition.
- Fire zone indication by both zone nameplates and a digital display.
- History list for last 10000 events.
- 5 auxiliary LED indicators.
- General fire alarm cut-off switch.
- Functions programmable at site.
- Arrow keys for easy database setting.
- 5 programmable option switches for signal cut-off.
- Built-in surge arrester for power lines.
- 25 programmable dry contacts interlocked by zone alarm signals.
- Serial output unit (PS485) is available as option unit.
Đặc tính kỹ thuật
| Model | FAPN104N-B1-30L |
| Type | Conventional type |
| Power supply | 220VAC 50/60Hz |
| Auxiliary power supply | Ni-Cd battery (24VDC, 1.2Ah) |
| Circuits voltage | 5, 24, 48VDC, 24VAC |
| Alarm verification time | Thermal detector: 10sec.; Smoke detector: 60 sec |
| Power consumption | Monitoring: approx. 40VA Alarm: approx. 100VA |
| Maximum number of devices supported | Spot type smoke detectors: 30/zone (max. no. of zones x 30/panel) Alarm bells: 45 (24VDC, 10mA/bell) Location lamps: 14 (30V, 2W/lamp); 56 (24VDC, 15mA/lamp) |
| Ambient temperature and humidity | 0 to 40°C, 20 to 85% (RH) |
| Alarm input circuit loop resistance | Less than 50Ω/Loop |
| End-of-Line resistor | 10kΩ, 1/2W |
| Materials (enclosure) | Steel sheet (t1.2 Front Panel, t1.6 Body) |
| Color | Off-white (Nohmi White): Approximating Munsell N8.7 or equivalent |
| Weight | Approx. 22kg |
| Dimensions | 700mm (H) x 530mm (W) x 125mm (D) |
- Bảo hành: 12 tháng.
