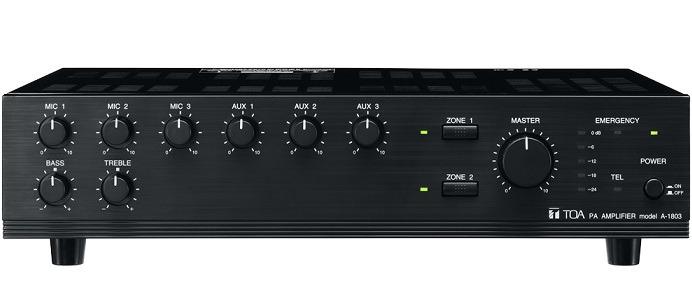

Mixer Amplifier 30W chọn 2 vùng TOA A-1803
- Được trang bị chức năng ưu tiên, tiếng chuông và lựa chọn 2 vùng loa, tăng âm A-1803 với công suất 30W được thiết kế thích hợp cho các ứng dụng hệ thống âm thanh công cộng như: Phát bản tin, giao tiếp liên mạng, BGM, và thông báo trong các trường học, văn phòng, cửa hàng.
- Chức năng điều khiển nguồn từ xa, khi kết hợp với tăng âm tuỳ chọn, sẽ giúp người dùng BẬT/TẮT nguồn của P-1812.
Đặc tính kỹ thuật
| Power Source | 220 V - 230 V AC, 50/60 Hz 24 V DC (M4 screw terminal) |
| Rated Output | 30 W |
| Power/Current Consumption | AC operation: 80 W (rated output), 37 W (EN60065) 24 V DC operation: 2.0 A (rated output), 1.0 A (EN60065) |
| Frequency Response | 50 Hz - 20 kHz (±3 dB) |
| Distortion | 2 % or less at 1 kHz, rated power |
| Input | MIC 1: -60 dB(*1), 600 Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack, DIN socket (5 pins) MIC 2 - 3: -60 dB(*1), 600 Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack AUX 1 (MOH): -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack AUX 2: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack AUX 3: -20 dB(*1), 10 kΩ, unbalanced, combined type of XLR-3-31 and phone jack TEL(*2): -20 dB(*1), 10 kΩ, electronically-balanced, M3 screw terminal EMERGENCY: 0 dB(*1), 600 Ω, unbalanced, M3 screw terminal |
| Output | REC: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack LINE 1, 2 (*3): 0 dB(*1), 600 Ω, unbalanced, RCA pin jack MOH: 0 dB(*1), 600 Ω, transformer balanced, M3 screw terminal SPEAKER SELECTOR: 2 zone, high impedance (100 V line/330 Ω), individual selector switch, M4 screw terminal DIRECT SPEAKER OUT: High impedance (100 V line/330 Ω), M4 screw terminal Low impedance (4 - 16 Ω), M4 screw terminal (Both Low and High impedance terminals cannot be used at the same time.) |
| Phantom Power | ON or OFF for each MIC1 - 3 with switch setting (+17 V DC) |
| S/N Ratio (Band Pass : 20 Hz - 20 kHz) | 100 dB or more (Master volume: min) 76 dB or more (Master volume: max) 60 dB or more (MIC 1 - MIC 3) 76 dB or more (AUX 1 - AUX 3) 90 dB or more (TEL) 96 dB or more (EMERGENCY) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control Input | TEL: No-voltage make contact input, open voltage: 24 V DC, short-circuit: 5 mA or less, M3 screw terminal EMERGENCY(*4): No-voltage make contact input, open voltage: 24 V DC, short-circuit: 10 mA or less, M3 screw terminal |
| Control Output | Power remote: Open collector output, withstand voltage: 35 V DC, control current: 50 mA or less, M3 screw terminal |
| Chime | 1-tone, 2-tone, or ascending 4-tone chime, or None selectable with switch setting, activated at MIC 1's DIN or CONTROL TEL terminal. |
| Indicator | 5 point LED output level meter, Power indicator LED, Zone indicator LED, Emergency LED, TEL LED |
| Priority | EMERGENCY: Overrides other inputs TEL: Overrides other inputs except 'EMERGENCY', ON/OFF selectable with switch setting MIC 1: Overrides other inputs except 'EMERGENCY & TEL', ON/OFF selectable with switch setting |
| Operating Temperature | -10 ℃ to +40 ℃ |
| Finish | Panel: ABS resin, black, hairline Case: Steel plate, black |
| Dimensions | 420 (W) × 107.7 (H) × 367 (D) mm |
| Weight | 8.1 kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
