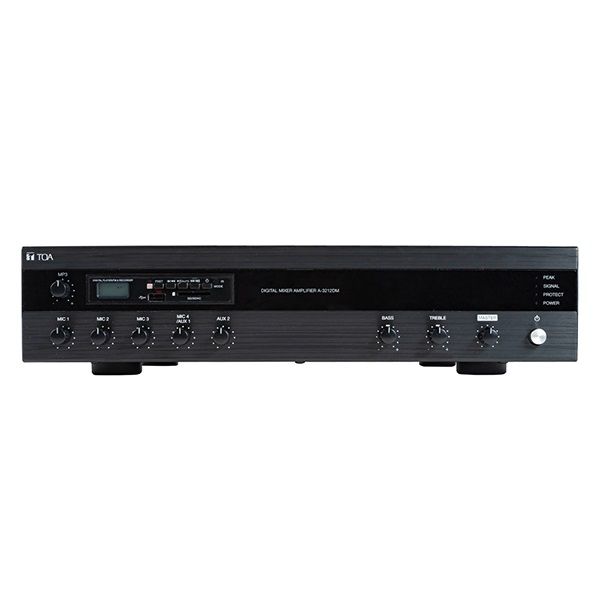

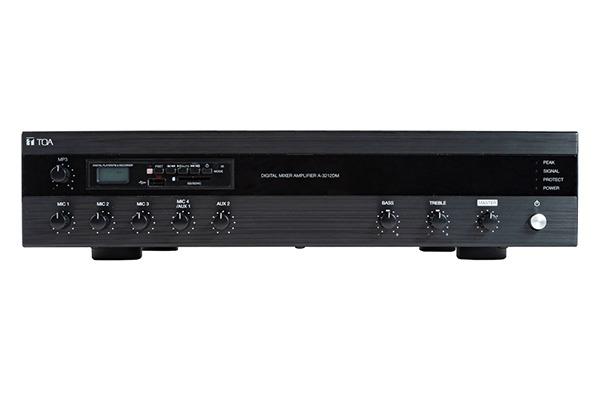

Amply Mixer MP3 ClassD 120W TOA A-3212DM-AS

- A-3212DM-AS Digital Mixer Amplifier with MP3 & Bluetooth, USB & SD Card Function (A3212DM AS).

- A-3212DM-AS is a high performance yet cost-effective mixer power amplifier equipped with MP3 and Bluetooth function. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

- Power Source: 100 - 240 V AC, 50/60Hz.

- Rated Output: 120W.

- Frequency Response: 50 - 20,000 Hz.

- Phantom Power: DC +21 V (MIC 1).

- S/N Ratio: Over 60 dB.

- Tone Control Bass: ±10 dB at 100 Hz.

- Treble: ±10 dB at 10 kHz.

- Indicator: Power, Signal, Peak, Protect.

- Ventilation: Natural Air Cooling.

- Finish: Panel: ABS resin, black.

- Case: Steel plate, black.

- Weight: 4.6 kg.

- Direct line (selectable): 83 Ω (100 V) or 4 Ω.

- Dimensions: 420 × 100.9 × 357mm.

- Rec out: 0 dB, 600 Ω, unbalanced, RCA pin jack.

- MIC 2-3: 1 mV (-60 dB), 600 Ω, balanced, phone jack.

- AUX 2: 100 mV (-20 dB), 10 kΩ, unbalanced, RCA pin jack.

- Output: Speaker out: Speaker Output in screw type terminal.

- Total Harmonic Distortion: Under 1% at 1 kHz, 1/3 rated power.

- Muting: MIC 1: Mutes other input signals by 0-30 dB attenuation.

- MIC 4: 1 mV (-60 dB) 600 Ω, balanced, phone jack, selectable to AUX 1.

- Power Consumption: 44 W (AC operation at 1/8 maximum output without clip).

- Input: MIC 1: 1 mV (-60 dB), 600 Ω, balanced, phone jack, selectable to RJ45.

- AUX 1: 100 mV (-20 dB), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4.

- MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record.

- Xuất xứ Indonesia.

- Bảo hành: 12 tháng.
