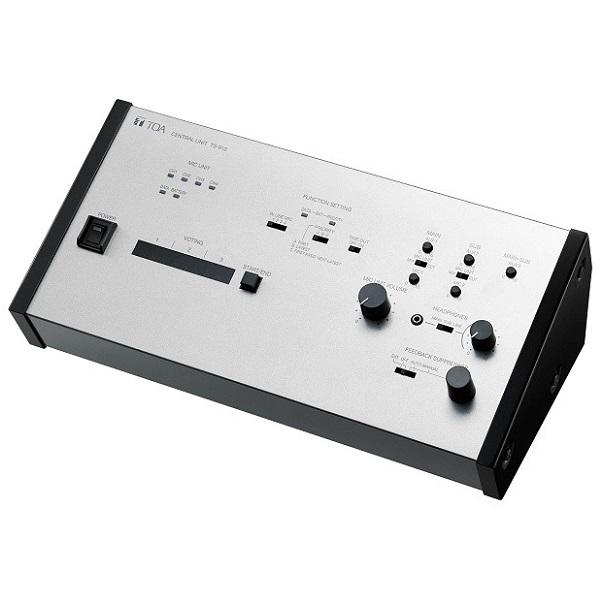

Ampli trung tâm dành cho hội thảo TOA TS-910
- The TS-910 is a Central unit of the Integrated conference system designed for use with both the Wired and Infrared conference units in combination.
- Connecting to the Expansion unit and Infrared Transmitter/Receiver unit, the TS-910 can control the conference units.
- Up to 192 Wired and Infrared Conference units in total can be used per system.
- The incorporated Feedback suppressor (FBS) function helps to effectively suppress acoustic feedback.
- External control, voting result confirmation, and equipment installation confirmation can be performed on a PC. Also, 2 channels of audio signal lines are provided for base language and translation language.
- With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
Specifications
| Model | TOA TS-910 |
| Power Source | 100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter) |
| Power Consumption | 72 W |
| Current Consumption | Max. 3 A DC (when 24 VDC is supplied from the accessory AC adapter) |
| Carrier Frequency | Reception: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Transmission: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz |
| Input | MIC 1 (Base Language): -60 dB, 600 Ω, unbalanced, φ6.3 mm phone jack (2P) MIC 2 (Translation Language): -60 dB, 600 Ω, unbalanced, φ6.3 mm phone jack (2P) AUX 1 (Base Language): -20 dB, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) AUX 2 (Translation Language): -20 dB, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) AUX 3 (Base and Translation Language): -20 dB, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) |
| Output | LINE: -20 dB, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) REC: -20 dB, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P), RCA pin jack HEADPHONES: φ3.5 mm mini jack (3P: monaural) |
| External Equalizer | Input: -20 dB, 10 kΩ, unbalanced, RCA pin jack Output: -20 dB, 10 kΩ, unbalanced, RCA pin jack |
| Number of Connectable Chairman/Delegate Units | 192 units |
| Number of Connectable Infrared Transmitter/Receiver Units | Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination) |
| Number of Connectable Expansion Unit | 4 units (Up to 8 units connectable when using a distributor) |
| Function Switch | Simultaneous speaker No. setting switch: 1/2/3/4 Mic-off setting switch: TIME OUT ON/OFF Speech priority selector switch: A/B/C (A: First-in-first-out priority, B: Last-in-first-out priority, C: Fixed for the first unit, and last-in-first-out for the subsequent units) FBS selector switch: External equalizer/OFF/FBS AUTO/FBS MANUAL |
| Finish | Panel: Surface-treated steel plate, gray metallic, paint, semi-gloss |
| Weight | 2.8kg |
- Sản xuất tại Việt Nam.
- Bảo hành: 12 tháng.
