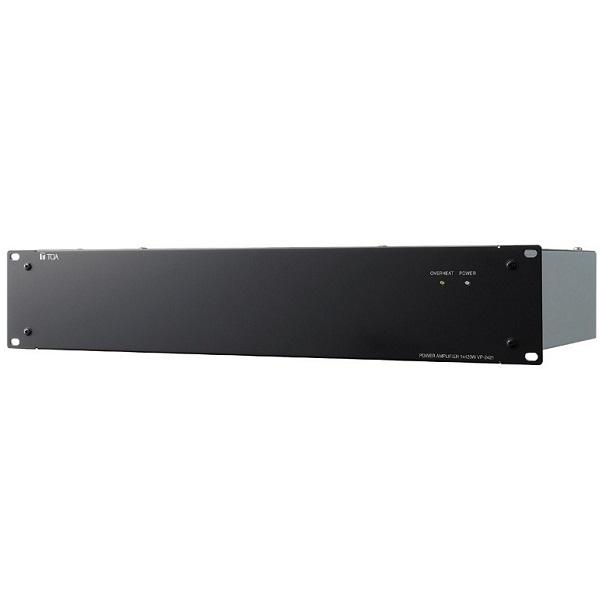

Bộ khuếch đại công suất 2x120W TOA VP-2122
The VP-2122 Power Amplifier features a 120 W-by-2 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.
Specifications
| Model | VP-2122 |
| Power Source | 28 VDC (operating range: 20 - 40 VDC) M4 screw terminal, distance between barriers: 12 mm |
| Current Consumption | 4.8 A in total |
| Rated Output Power | 120W × 2 (at min. resistive and max. capasitive load) |
| Output Power | 90 W × 2 (at min. resistive and max. capasitive load) |
| Output Voltage | 100 V (70 V, 50 V: selectable by internal wiring change) |
| Minimum Resistive Load | 83 Ω (at 100 V), 41 Ω (at 70 V), 21 Ω (at 50 V) |
| Maximum Capacitive Load | 0.25 μF (at 100 V), 0.5 μF (at 70 V), 1 μF (at 50 V) |
| Number of Channels | 2 |
| Input | Specified by input module VP-200VX |
| Number of Module Slots | 2, usable module: VP-200VX |
| Output | Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8 mm |
| Frequency Response | 40 Hz - 16 kHz, ±3 dB (at 1/3 rated output) |
| Distortion | 1 % or less (at rated output, 1 kHz) |
| S/N Ratio | 80 dB or more |
| Operating Temperature | 0ºC to +40ºC |
| Finish | Panel: Surface-treated steel plate, black, 30 % gloss, paint |
| Dimensions | 482 x 88.4 x 340.5 mm |
| Weight | 9.1kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
