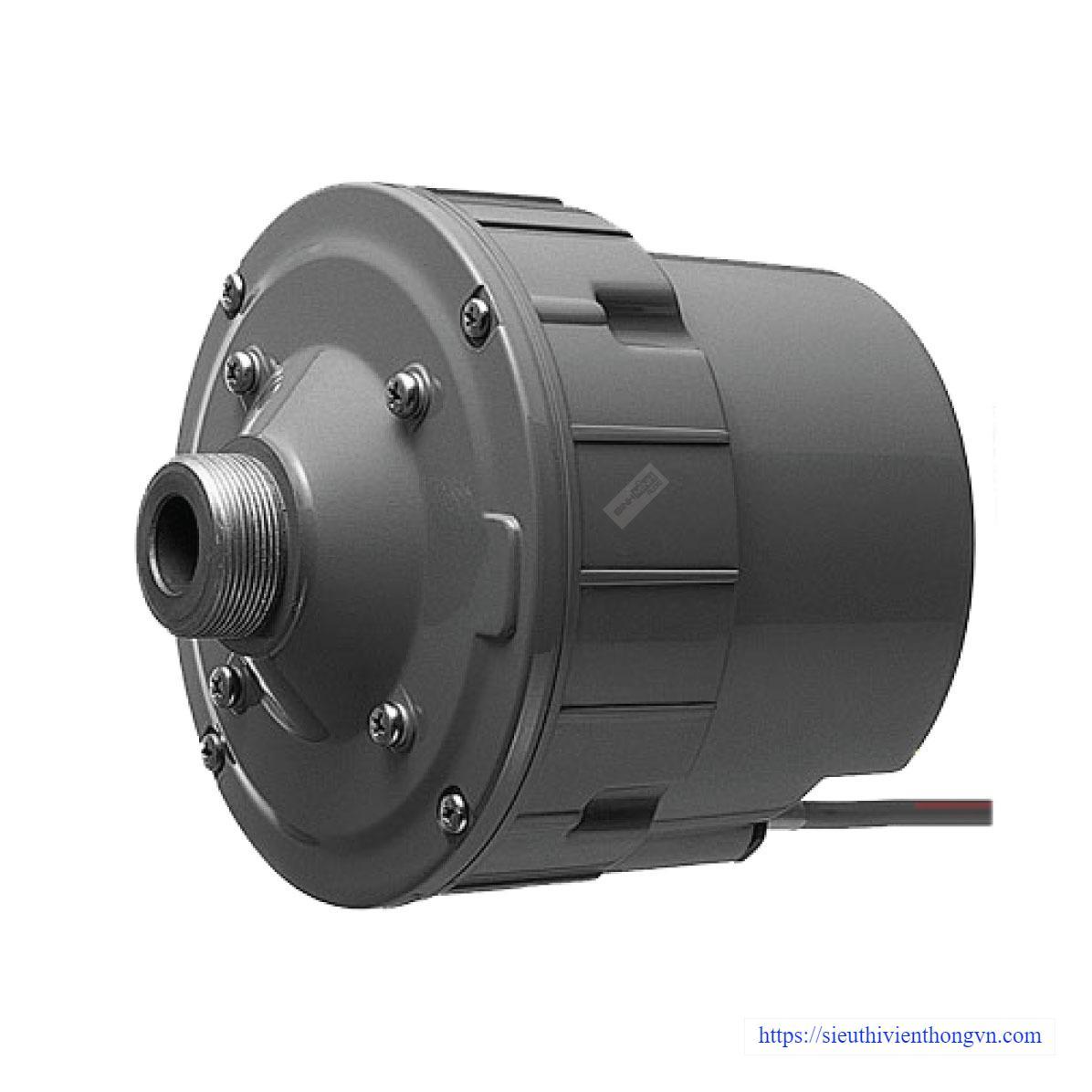

Củ loa 30W TOA TU-631M
The TU-631M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.
Specifications
| Model | TU-631M |
| Applicable Horns | TH-650, TH-660 |
| Rated Input | 30 W |
| Line Voltage | 100 V line or 70 V line |
| Rated Impedance | 100 V line: 330Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W) 70 V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5 W), 1kΩ (5W), 2kΩ (2.5W) |
| Sensitivity | 110 dB (1W, 1m) |
| Frequency Response | 150 Hz - 6 kHz |
| Dust/Water Protection | IP-65 |
| Horn Coupling | 1 - 3/8, 18 threads (inch screw) |
| Polarity | Hot: Black, Com: White |
| Dimensions | φ 139 × 149 (D) mm |
| Weight | 1.9kg |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
