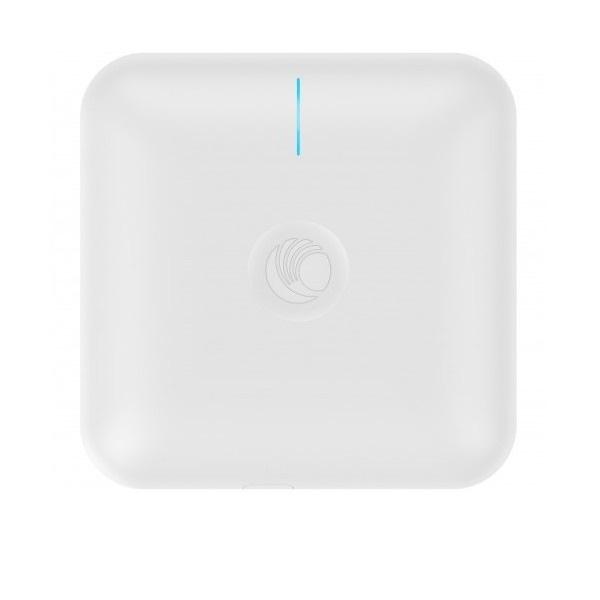

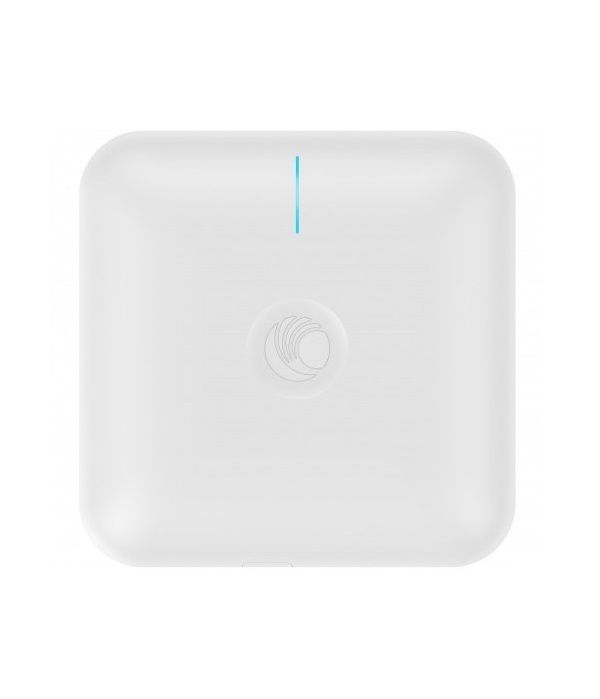

Wifi Access Point Cambium cnPilot e410
- Cambium cnPilot e410 là thiết bị thu phát sóng WiFi chuyên dụng trong nhà, hoạt động trên 2 băng tần 2.4GHz và 5GHz, chuẩn 802.11ac Wave2.
- Thiết bị hỗ trợ tốc độ lên đến 867Mbps (5GHz), kiểu dáng công nghiệp bo tròn vuông vức thiết kế tinh tế, lắp đặt dễ dàng, linh động phù hợp cho khách sạn, văn phòng, nhà hàng, quán café, khu nghỉ dưỡng, ký túc xá hoặc những nơi cần trang bị WiFi.
Specifications
| Model | e410 |
| Radios | 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2 1 x 2.4 GHz (802.11 b/g/n), 2X2 SU-MIMO / MU-MIMO: 2 streams |
| Wi-Fi | 802.11 a/b/g/n/ac |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate | 2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps |
| Ethernet | Three IEEE Gigabit Ethernet auto sensing |
| Antenna | Internal omni-directional 2.4 GHz: 4 dBi 5 GHz: 4.29 dBi |
| Max EIRP | 2.4 GHz: 25 dBm 5 GHz: 25 dBm |
| WLAN | 256 clients, 16 SSIDs (WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF) |
| Power | 802.3af or 802.3at powered device |
| Dimensions | 170 x 170 x 41 mm |
| Weight | 384g |
| LEDs | Single Tri-color LED (amber, blue, green) |
| Storage Temperature | -40ºC to 70ºC |
| Ambient Operation Temperature | 0ºC to 50ºC |
| Management | |
| Interfaces | HTTP / HTTPS web interface, SSL, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP |
| Deployment | cnMaestro Cloud, cnMaestro on-premises, Standalone AP |
| Services | Monetized, cloud-managed guest portal with design tools |
| APIs | RESTful management and statistics API Presence location API Splunk WebSocket integration, WebSocket DNS, NAT, TCP connection log |
| Captive Portal | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS external portal/ authentication Active Directory integration, Google, Facebook, Office 365 integration Data rate, time duration, data throughput limit Server DNS logging |
| Hotspot 2.0 | Hotspot 2.0/Passpoint 2.0 |
| Accounting | RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM |
| WLAN and Network | |
| Authentication Encryption | 802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS. MAC auth fallback to guest portal |
| Scheduled WLAN | On/off by day, week, time of day |
| QoS | 802.11e/WMM QoS. DSCP/ToS mapping |
| VLAN | 802.11Q, max 4096 |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop (3), either band |
| Channel Selection | Auto RF: manual or automatic |
| Auto TX Power | Auto RF: automatically adjust max transmit Power |
| Network | NAT, NAT logging firewall, DOS protection, L2/L3/DNS ACL, DHCP server, DHCP Relay option 82 LLDP, IGMP v1, v2, v3 VLAN Pooling, RADIUS attribute VID VLAN per SSID, per user Integrated WIDS (wireless intrusion detection) |
| Band Steer Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Standards | |
| Wi-Fi Protocols | VHT MCS rates, 256-QAM, HT20/40/80 MHz Transmit beamsteering, Airtime Fairness, Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save, MRC |
- Bảo hành: 5 năm.
