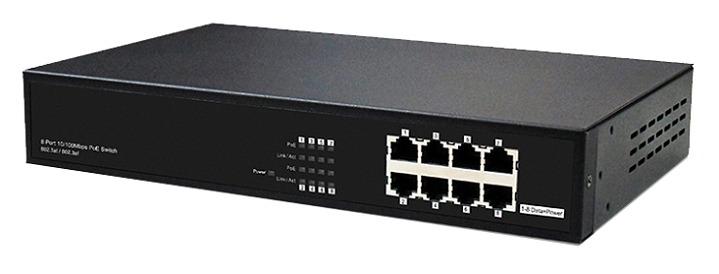

8-Port 10/100/1000Mbps PoE Switch IONNET IGS-804 (130Watt)
- Bao gồm 4-Port PSE/ PoE, công suất 130 Watt.
- 8 port Gigabit 10/100/1000Mbps Switch with 4 port IEEE802.3af/ 802.3at (PoE+).
- Complying with IEEE 802.3 10Base-T.
- Complying with IEEE 802.3u 100Base-TX.
- Complying with IEEE 802.3ab 1000Base-T.
- Complying with 802.3x Flow Control.
OverView
- IGS-804(130) is 8 10/100/1000Mbps port Power over Ethernet switch which consists of 4 PSE/ PoE ports. The models compliant to POE IEEE 802.3at, it defines new green power saving idea on PSE Port. That device application: wireless Access Point; PoE client device; IP phone and IPcam system. It can Power 4 PoE client devices in same time.
Features
- Providing 8 ports of 10/100/1000Mbps TX Switching port.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- Complying with 802.3x Flow Control.
- 4 Ports PSE/ PoE function, compliant with IEEE-802.3af class3 and IEEE802.3at.
- Supporting the power up to Max 30Watt for each PSE/PoE port.
- Supporting the flow control: Back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode.
- All ports support Auto-MDIX function.
- Being dedicated 2000Mbps Full-duplex bandwidth to the each port.
- Broadcast storm control and supporting store & forward operation.
- Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
- Auto-learning networking configurations.
- Built-in 2K MAC learning table, 96K byte buffer memory.
- Filtering/Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/ 14,880pps.
- Supports packet length 1522 bytes/ Maximum 1536bytes.
- Jumbo frames: 9K.
- Status LEDs: System Power, Link/ Activity, PoE/ PSE on line.
- Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/ STP; 100Base-TX Cat. 5 UTP/ STP, 1000BASE-T Cat. 5E UTP/ STP.
- Power Consumption: 8 Watt
- Maximum Supply PoE Power per device: 130 Watt.
- Safety and EMI Certificates: CE and FCC.
- Smart plug and play.
- Operating Temperature: 0ºC ~ 45ºC.
- Storing Temperature: -20ºC ~ 90ºC.
- Humidity: 10% ~ 90% RH (Non-condensing).
- Dimension: 263 x 160 x 44 mm (1U high).
- Weight: 1350g.
Specification
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE802.3af/ 802.3at | |
Features | Number of Ports: |
8 10/100/1000BaseT with RJ-45 Connector | |
4 PSE ports with RJ-45 connectors | |
Data Transfer Rate | Ethernet: |
10Mbps/Half-Duplex | |
20Mbps/Full-Duplex | |
Fast Ethernet: | |
100Mbps/ Half-Duplex | |
200Mbps/ Full-Duplex | |
Gigabit: | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/ STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: |
(TX): 10/100M Link/Act, 1000M, PoE | |
Per Unit: Power | |
Operating Temperature | 0 to 45ºC |
Storage Temperature | -20 to 90ºC |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC Class A, CE |
Maximum Supply PoE per Device | 130 Watt |
Power Consumption | 8Watt |
Dimensions | 263 x 160 x 44 mm |
Weight | 1350g |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
